Mail：ffx@wzsuzx.comMain Function Features
The Main Purpose
This machine is suitable for transfer of aluminized paper carrier, Metallized paper, anodized hot stamping film coating production. It can also be used in other films and paper coating production.
Mechanical parameters
| Model No. | TGH－1450 | |
| Coating Method | Alinox Coating | |
| Coating Width | 1450mm | |
| Guide Wheel Width and Diameter | Ф80mm×850mm | |
| Unwind/Rewind Method | Single Station | |
|
Max-unwind diameter |
?800mm | |
|
Max-rewind diameter |
?820mm | |
| Drying Oven Length | 15m | |
| Heating Method |
|
|
| Drying Oven Tempreture | 50-180℃ | |
| Speed | 10-130m/min | |
| Machine Speed | 150m/min | |
| Size | 19000×2500/3300×4800mm | |
| Weight | About 13000kg |
Peformancea And Features
1. The whole machine with 4 variable frequency motor control, tension (in volume, coated, traction and rewinding) with Japanese MITSUBISHI PLC controlled automatically by the human machine interface and touch screen control display and increase the reliability of the tension of the whole machine.
2. A shelving independence, by magnetic powder automatic tension control.
3. Pattern is coated manner, coated with heavy-Scraper Axis Dual Axis Type mechanical independent roving, Scraper Control to Manual with pneumatic, free adjustment angle, coated depends on the amount of net roll of wire, different application to change between the different pattern of the roller.
4. The Oven is 15 m sub-paragraph 7 independent temperature control, the heating with thermal oil, hot air into the heating cycle-drying system, adjustable recirculating exhaust, drug, exhaust powerfull, dry thoroughly.
5. Inside the pulley with active synchronization with the host, the drive with the drive pulley, relief materials stretched and distorted, top-of-the cylinder and wear oven film operating platform, allows the operating workers ease of work.
6. Application roller --- Hitch Steel Roll tension in the middle with a floating synchronization swing arm boards is automatically controlled by the PLC.
7. The automatic meter rate control unit
8. High-ultrasonic edge, in order to take the volume up.

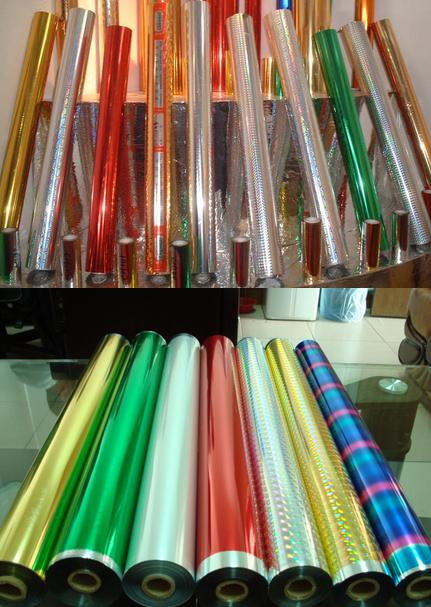

Samples
